The Lego Power Functions Idea book. Vol 1: Machines and Mechanisms #169

Completion date: June 7, 2020

The Lego Power Functions Idea book.  Vol 1: Machines and Mechanisms #169

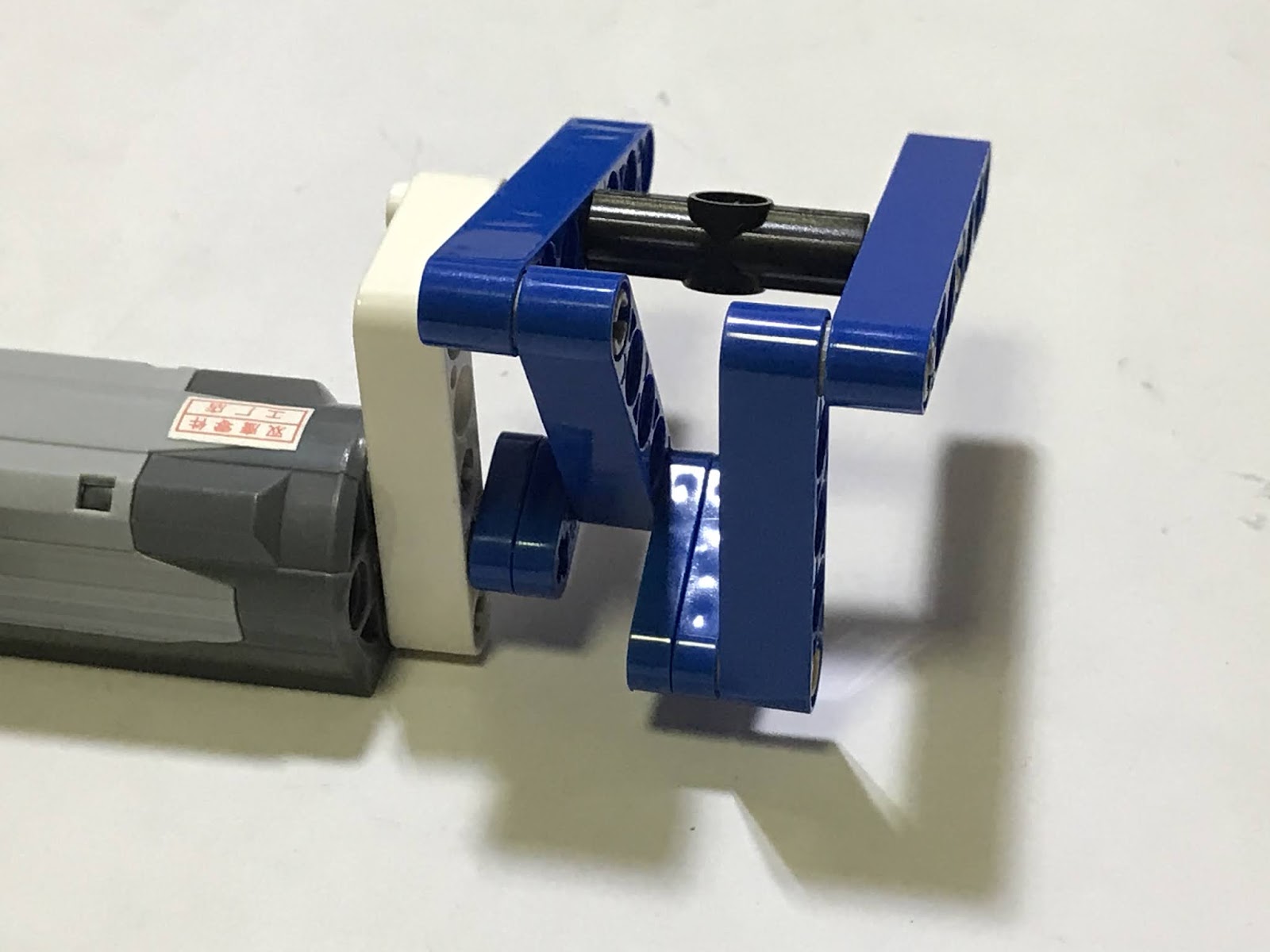

I followed the e-book version on this one.  The result is a walking motion of the legs swings in opposite directions.  The motor is too fast and I didn’t take a video on this one.
